100LPH High-effect stainless steel laboratory water distiller

FOB Reference Price:Get Latest Price
US $2,600-2,800 / Sets | 1 Set/Sets laboratory water distiller (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
GUANYU
Model Number:
GJZZ-100
materials:
stainless steel 304/316
Used For:
Pharmaceutical factory, hospital preparation room,Lab
Features:
Long life,saving steam,saving water,saving equipment
PH Valve:
PH5-7 any adjustment
Water Quality:
Water conductivity meet GB<=2us/cm
Speciality:
Automatic descaling
Application:
Liquid
Type:
laboratory water distiller
SupplyAbility
SupplyAbility:
Set/Sets per Year laboratory water distiller
Packaging & Delivery
Packaging Details
Fumigation wooden box or as required
laboratory water distiller
Port
Tianjin
Lead Time :
5days

100L High-effect stainless steel laboratory water distiller

Product Description



The equipment is GuanYu companies rely on their own comprehensive strength,solve the tower-type water distiller machine U-tube structure, cooling by water flow, structure fall behind,high energy consumption, water scale cleaning difficulties defect,development and production of high-tech energy-saving products.






          modle

parameter

category

GJZZ

-100

GJZZ

-200

GJZZ

-300

GJZZ

-400

GJZZ

-500

GJZZ

-800

GJZZ

-1000

Distilled water

Yield(L/H)

100

200

300

400

500

800

1000

Distilled water

Temperature()

72-97

72-97

72-97

72-97

72-97

72-97

72-97

Return water

temperature ()

70-95

70-95

70-95

70-95

70-95

70-95

70-95

Cooling water

Pressure(Mpa)

>0.1

>0.1

>0.1

>0.1

>0.1

>0.1

>0.1

Cooling water

consumption

1:6

1:6

1:6

1:6

1:6

1:6

1:6

Steam pressure

(Mpa)

0.15

0.15

0.15

0.20

0.20

0.25

0.25

Steam consumption (Kg/H)

102

204

306

408

510

816

1020

Steam admission

Pipe dia (mm)

20

20

25

32

32

40

40

Cooling water pipe

Dia (mm)

15

15

20

20

25

32

32

Weight (kg)

80

95

115

135

140

230

230





Dimention



Base dia

(mm)

500

500

500

600

600

560x650

560x650

Max dia

(mm)

700

700

700

800

800

1350

1350

Height

(mm)

1450

1650

2000

2200

2400

2500

2600





1.evaporation pot     2.vopor separator miscella separator     3.condensing apparatus

4.vopor separator miscella separator      5.filling water barrels      6.steam input

7.barometer     8.water outlet     9.water gage     10.evaporation tube     11.warning pipe

12.waste water outlet     13.control valve     14.filling water barrels cover     15.waster valve

16.distilled water outlet     17.cooling water inlet     18.cooling water outlet      19.nitrogen discharge outlet

20.deain outlet     21.nameplate

              Water Distiller                                 Filter                                    UV Sterilizer



Our Services

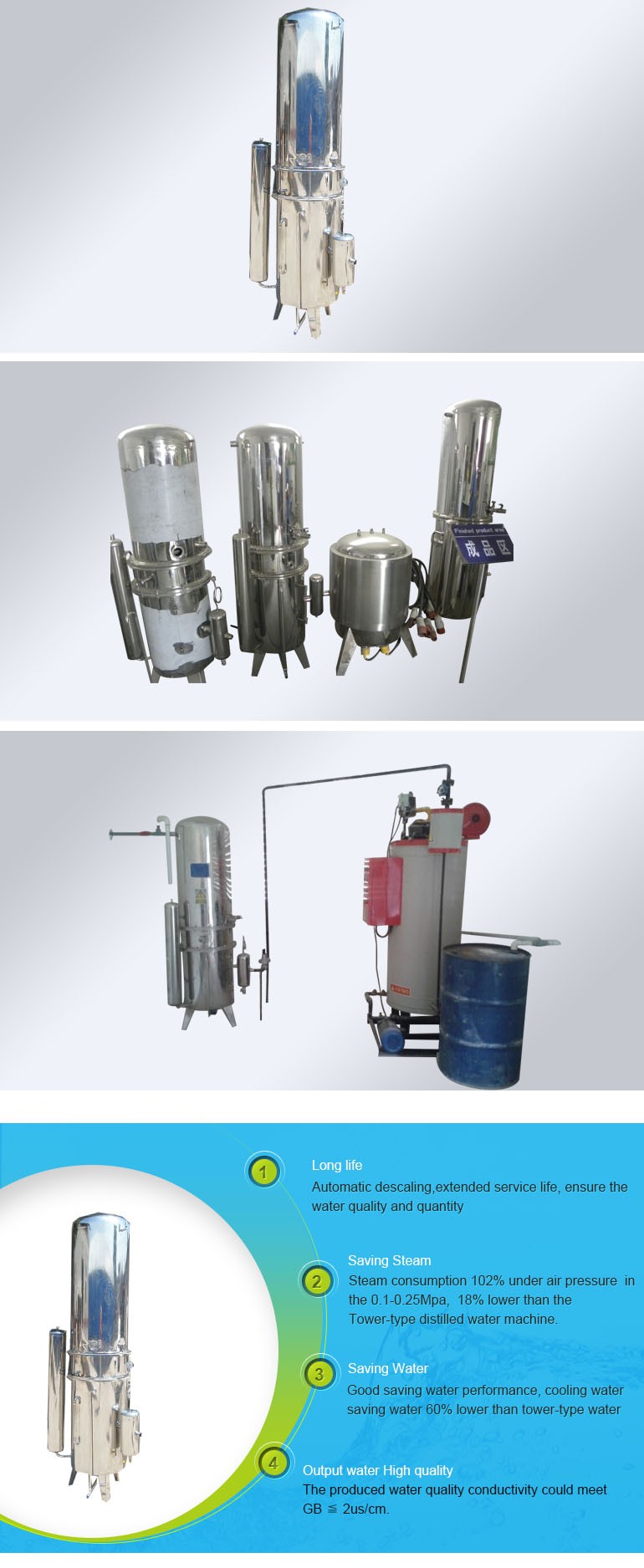

Compared with other disinfection forms, high effect water distiller machine has the following advantages:

Ø  Long operating life

     Automatic descaling when water scale reach 1 mm thick

Ø  Saving steam

     Consuming steam 102% under the pressure of 0.1-0.25Mpa, lower 18% than tower style



Ø  Saving water



     Cooling water ratio1:6, saving water 60% than tower style (1:14)



Ø  Saving equipment



  • Directly using well water or city tap water
  • Compared to multiple effect water distiller machine , saving early

    stage ‘s antiosmosis ( electrodialysis ),mixed bed and pretreatment equipment , greatly saving the cost .

Ø  The quality of output water high

     The conductivity of produced distilled water is in line with national standard <=2us/cm
